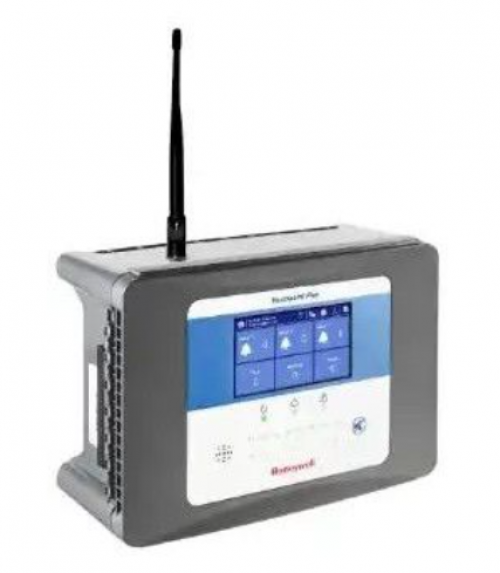

TouchPoint Plus Wireless
TouchPoint Plus Wireless
Description
The TouchPointPlus Wireless is a hybrid multi-channel controller with a built-in wireless modem that is designed for integration with RAE Systems by Honeywell MeshGuard intelligent network of connected sensors combined with traditional hard wired sensors. It is the command-and-control element of the wireless gas detection system that gathers data, monitors and activate alarms from MeshGuard toxic, flammable gas and flame detection monitors.
Features and Benefits:
- Quick and easy installation
- Simple, intuitive operation
- Rugged and reliable
- Flexible to handle a variety of data processing and communication needs
- Manages up to 64 wireless channels
- 8 analogue 4-20mA inputs
- Up to 14 programmable relay outputs
- Touchscreen LCD
Additional Information
Dimension : 426 mm × 300 mm × 156 mm
Weight : 8.5 Kg
Category : Controller
Power : 110/220 VAC, 50-60 Hz
Backup Battery : Yes
Alarm : Audible, Visual
Wireless : Mesh Network
Certificate : Class 1 Div 2 Groups A, B, C, D
IP Rating : IP65
Data Log / Event Log : Yes using SD Card max 8GB
Feature and Benefit :
- Built in wireless modem to connect with Mesh Network
- Able to connect up to 64 channel
- 14 Relay output programmable
- Modbus RS485 and TCP interface
- Compatible with RAE-Met for Metrological Data Sensor
