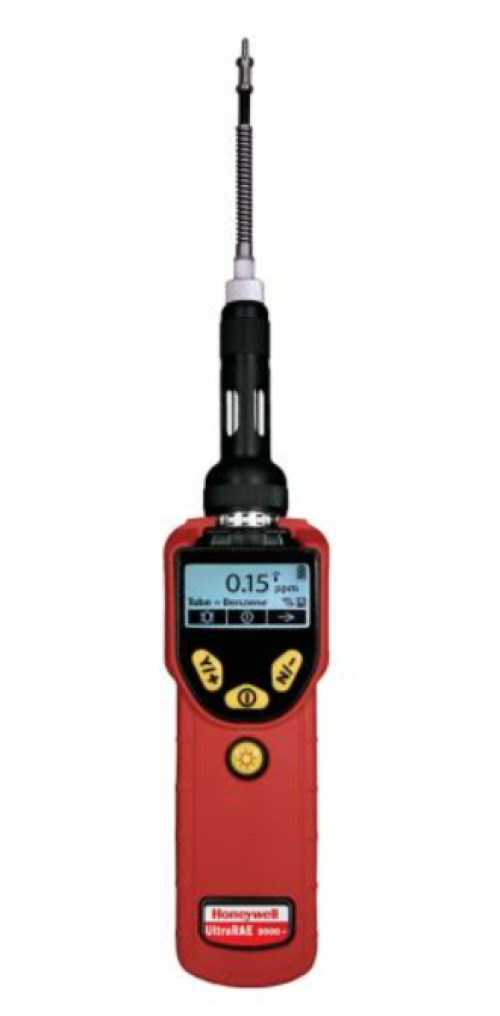

UltraRAE 3000
UltraRAE 3000
Descriptions:
The UltraRAE 3000 is the most advanced Compound-Specific Monitor on the market. Its Photoionization Detector’s (PID)extended range of 0.01 to 10,000 ppm in VOC mode and 10 ppb to 200 ppm in benzene-specific mode makes it an ideal instrument for applications, from entry pre-screening during refinery and plant maintenance to hazardous material response, marine spill response and refinery down-stream monitoring.
Dual detection mode for total benzene exposure assessment: 60-second snapshot or 15-minute STEL measurement
High sensitivity to benzene (as low as 10 ppb) provides a lower detection range for future benzene exposure limits
Lower risk of false alarms through advanced speciation method
Total VOC measurement mode with extended range of 0.05 to 10,000 ppm
Key Features:
- Proven PID technology
- 3-second response in VOC mode or 60 seconds in compound-specific mode
- Extended range up to 10,000 ppm (in VOC mode) with improved linearity
- Built-in humidity sensor
- Automatic temperature-controlled sampling time calculation
- Highly specific readings, combining a 9.8eV UV lamp and RAE-Sep™ benzene tube
- New sampling probe design provides instant tube-breakthrough visibility
- Versatile VOC or Benzene-Specific modes
- Real-time wireless with built-in Bluetooth and optional RAELink3 portable modem
- Integrated RAE Systems Correction Factors list for more than 200 compounds
- Easy to Use
- Large graphic display
- Multi-language support
- Easy access to lamp, sensor and battery in seconds without tools
- Low Cost of Ownership
- Inexpensive analysis using low-cost RAE-Sep tubes
Applications:
- Confined space entry pre-screening during refinery and plant maintenance
- Hazardous material response
- Marine spill response
- Refinery down-stream monitoring
- Plant overhaul
Package Includes:
- UltraRAE 3000 Monitor, Model PGM-7360
- Wireless communication module built-in
- Datalogging compatible with ProRAE Studio and Safety Suite Software
- Travel Charger
- RAE UV lamp and RAE-Sep™ Tubes
- Flex-I-Probe™ and short probe
- External filter
- Red rubber boot
- Alkaline battery adapter
- Lamp-cleaning kit
- Tool kit
- Lithium-ion (Li-Ion) battery with universal AC/DC charger and international plug kit
- Operation & Maintenance manual
- Soft leather carrying case
Additional Information
Dimension : 25.5 x 7.6 x 6.4 cm
Weight : 738 grams
Category : Portable PID Detector
Sampling Method : Pump with max hose length 30 m
Sensor Option :
VOC (0-10000ppm)
Benzene (0-200ppm)
Butadiene (0-200ppm)
Battery : Rechargeable with charger included in package
Alarm : Audible, Visual, Vibrate, Man Down
Wireless : ISM Mesh Network
Certificate : Class 1 Div 1 Groups A, B, C, D
IP Rating : IP65
Data Log / Event Log : Yes included
Feature and Benefit :
- Most advanced handheld VOC monitor on the market
- Specific Benzene resolution as 10 ppb measurement
- Wireless Capability
- BLE connect directly to Phone, survey report of measurement can be reported directly from smartphone
