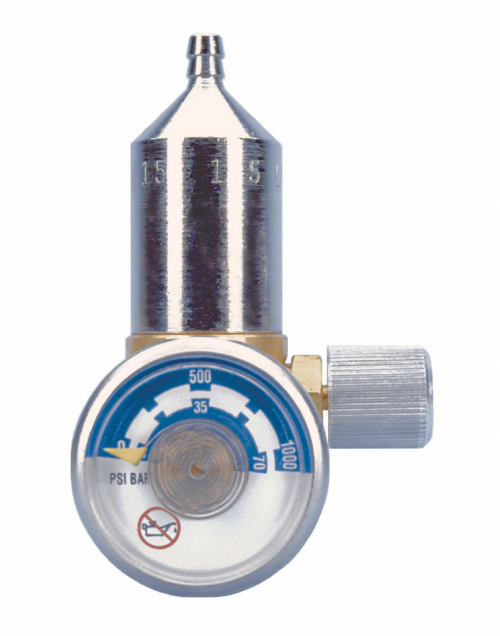

Regulator 715
Regulator 715
Descriptions:
Calgaz, the world’s leading manufacturer of calibration gases and equipment is proud to offer the most comprehensive range of specialist regulators for non-refillable and portable gas cylinders.
Today, the most popular regulators supplied by Calgaz is the 700 series, which almost certainly has a regulator that is right for your application.
These fixed flow regulators are preset to a specified flow rate and fully flow checked at the factory ensuring they reach you perfectly calibrated for your needs.
Overview:
Inlet : 5/8" - UNF C-10 Connection
Flow Rate : 0.2 - 6 LPM
Stage : Single Stage
Max Inlet Pressure : 1000 psi
Max Outlet Pressure : 60 psi
On / Off Valve : Yes
Gauge : Yes
Material of Construction
Body : Ni-Brass
Piston : Brass
Seal : Viton
Seat : Teflon
Weight : 0.25 Kg
Technical Note:
REG-715 is suitable for Non-Reactive gases including H2S and SO2.
We recommend to use REG-735 with Stainless Steel material to use with Reactive Gases such as NO, NO2, Cl2, HCL, NH3, PH3, HCN
